For making the ‘V’ notch in Izod / Charpy samples, as per ASTM D-256, ASTM D-6110, ISO 179 and ISO 180.
The Motorised Notch Cutter is used for making the ‘V’ notch in Izod and Charpy impact specimens, as per ASTM D-256, ASTM D-6110, ISO 179 and ISO 180. Impact strength is highly sensitive to the geometry of the notch, so a precise, repeatable notch is essential for accurate and comparable Izod / Charpy results — making the notch cutter an important companion to the impact tester.
Notch depth is measured with a high-precision Mitutoyo depth micrometer (0–25 mm, least count 0.01 mm) and the cutting angle is a standard 45°. International Equipments offers a standard model and a variable-speed model, the latter driven by a 1440 rpm motor with a vector-controlled variable speed drive to fine-tune cutting speed for different materials, along with an acrylic safety jacket for safe operation.
Motorised Notch Cutter
| Standards | For making ‘V’ notch as per ASTM D-256 & ASTM D-6110, ISO 179 & ISO 180 |
|---|---|
| Depth Micrometer | “Mitutoyo” make |
| Range | 0 – 25 mm with least count of 0.01 mm |
| Cutting Angle | 45° |
| Paint | Powder coated |
| Power | 230 Volts, 50 Hz, single phase |

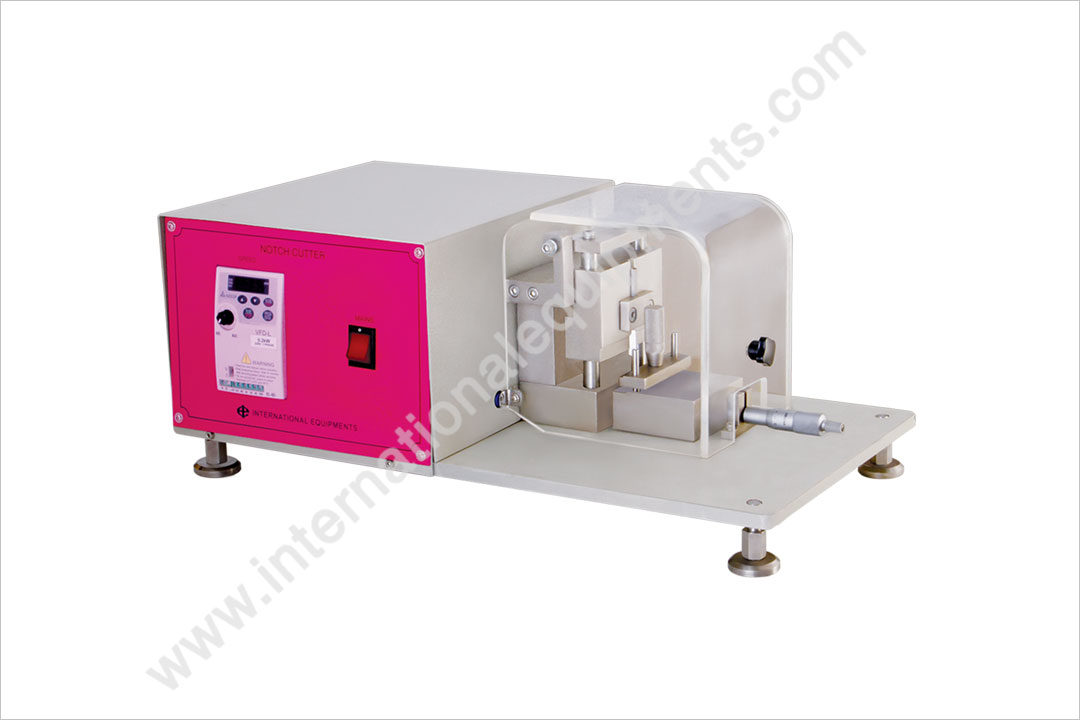

Motorised Notch Cutter (Variable Speed)
| Standards | For making ‘V’ notch as per ASTM D-256 & ASTM D-6110, ISO 179 & ISO 180 |
|---|---|
| Depth Micrometer | “Mitutoyo” make |
| Range | 0 – 25 mm with least count of 0.01 mm |
| Operation | Motorised, having motor of 1440 rpm |
| Cutting Angle | 45° |
| Drive | Vector-controlled variable speed drive for adjustment of cutting speed |
| Safety | Acrylic safety jacket provided |
| Paint | Powder coated |
| Power | 230 Volts, 50 Hz, single phase |
Tell us the standard you test to — our engineers will help you choose between the standard and variable-speed models.
